Introduction
When discussing four-wheel-drive and all-wheel-drive vehicles, one component consistently stands out as critical to overall performance: the transfer case. Although many drivers focus on engines, transmissions, and suspension systems, the transfer case plays an equally important role in ensuring power reaches all wheels efficiently. Whether you own a rugged off-road truck, a modern SUV, or a utility vehicle designed for challenging terrain, understanding the transfer case is essential for maintaining vehicle reliability and maximizing drivetrain performance.
The phrase “transfer case transfer case” may sound repetitive, but it highlights how frequently this component is discussed in automotive repair, maintenance, and off-road communities. The transfer case is the heart of a four-wheel-drive system, responsible for distributing power from the transmission to the front and rear axles. Without it, true four-wheel-drive capability would not exist.
This comprehensive guide explores everything you need to know about transfer cases, including how they work, their different types, common problems, maintenance tips, repair costs, and how to choose the right transfer case for your vehicle. By the end of this article, you will have a clear understanding of why the transfer case is one of the most important components in modern drivetrain systems.

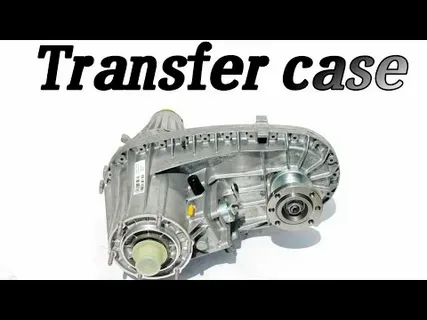

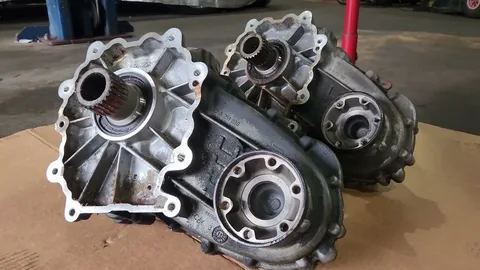

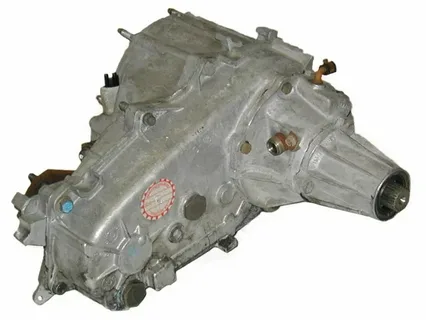

What Is a Transfer Case?
A transfer case is a specialized gearbox found in four-wheel-drive (4WD) and all-wheel-drive (AWD) vehicles. It is connected directly to the transmission and is responsible for transferring engine power to both the front and rear axles.
In a standard two-wheel-drive vehicle, power flows from the engine through the transmission to either the front or rear wheels. However, in 4WD and AWD systems, power must be split between both axles. This is where the transfer case comes into play.
The transfer case performs several critical functions:
- Distributes torque between front and rear axles
- Enables switching between 2WD and 4WD modes
- Provides low-range gearing for off-road driving
- Enhances traction on slippery or uneven surfaces
- Improves towing and hauling capability
Without a functioning transfer case, a four-wheel-drive vehicle would lose much of its off-road capability and traction performance.
How Does a Transfer Case Work?
The transfer case receives rotational power from the transmission output shaft. Inside the transfer case are gears, chains, shafts, and sometimes electronic components that direct power to the front and rear driveshafts.
Depending on the design, the transfer case can operate in several modes:
Two-Wheel Drive Mode
In 2WD mode, power is sent to only one axle, usually the rear axle in trucks and SUVs. This mode improves fuel efficiency and reduces drivetrain wear during normal road driving.
Four-Wheel Drive High Mode
In 4WD High mode, power is distributed to both axles equally or proportionally. This mode is used for snow, mud, gravel, or slippery roads where additional traction is required.
Four-Wheel Drive Low Mode
4WD Low mode engages a lower gear ratio inside the transfer case. This increases torque while reducing vehicle speed, making it ideal for steep climbs, deep mud, rock crawling, and heavy towing.
All-Wheel Drive Operation
Some transfer cases operate automatically in AWD systems. Sensors monitor wheel slip and adjust torque distribution electronically without driver input.
Main Components of a Transfer Case
Understanding the internal components of a transfer case helps explain how the system functions efficiently.
Input Shaft
The input shaft connects the transfer case to the transmission. It receives rotational power directly from the transmission output.
Output Shafts
The transfer case contains front and rear output shafts that send power to the respective axles.
Gear Sets
Gears inside the transfer case determine torque distribution and gear reduction for low-range operation.
Drive Chain
Many modern transfer cases use heavy-duty chains instead of gears to transfer power internally.
Shift Forks
Shift forks engage or disengage various drive modes such as 2WD, 4WD High, and 4WD Low.
Electronic Actuators
Modern vehicles often use electronic motors or actuators to shift transfer case modes automatically.
Bearings and Seals
Bearings support rotating components while seals prevent fluid leaks and contamination.

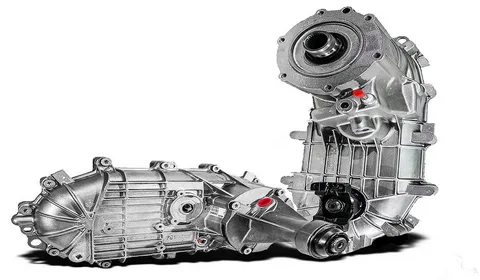

Types of Transfer Cases
There are several types of transfer cases used in modern vehicles. Each type offers different advantages depending on intended use.
Gear-Driven Transfer Case
Gear-driven transfer cases use interlocking gears to transfer power. These systems are extremely durable and commonly found in heavy-duty trucks and serious off-road vehicles.
Advantages include:
- Exceptional strength
- Long lifespan
- Reliable performance under heavy loads
Disadvantages include:
- Heavier weight
- Increased noise
- Higher manufacturing cost
Chain-Driven Transfer Case
Chain-driven transfer cases use a reinforced metal chain to transfer torque internally.
Advantages include:
- Lightweight design
- Quiet operation
- Lower production cost
Disadvantages include:
- Chain wear over time
- Slightly lower durability under extreme stress
Most modern SUVs and pickup trucks use chain-driven transfer cases.
Manual Transfer Case
Manual transfer cases require the driver to engage four-wheel-drive modes using a mechanical lever.
Benefits include:
- Simplicity
- Reliability
- Greater driver control
These systems are common in older trucks and off-road vehicles.
Electronic Transfer Case
Electronic transfer cases use push-button controls and computer systems for mode selection.
Advantages include:
- Convenience
- Faster shifting
- Automatic operation
Disadvantages include:
- More complex electronics
- Higher repair costs
Full-Time Transfer Case
A full-time transfer case continuously powers all wheels. These systems are common in AWD vehicles.
Benefits include:
- Improved traction
- Seamless operation
- Better road handling
However, they may reduce fuel efficiency compared to part-time systems.
Part-Time Transfer Case
Part-time systems allow the driver to engage four-wheel drive only when needed.
Advantages include:
- Better fuel economy
- Reduced drivetrain wear
- Greater flexibility
These systems are popular in pickup trucks and traditional SUVs.
Importance of the Transfer Case in Off-Road Driving
The transfer case is essential for off-road capability. It allows vehicles to maintain traction in difficult environments such as:
- Mud
- Sand
- Snow
- Rocky terrain
- Steep inclines
- River crossings
Low-range gearing provided by the transfer case significantly increases torque output, allowing vehicles to crawl over obstacles safely and efficiently.
Off-road enthusiasts often upgrade transfer cases to improve durability and performance during extreme adventures.
Common Transfer Case Problems
Like any mechanical component, transfer cases can develop issues over time. Identifying symptoms early can prevent expensive repairs.
Fluid Leaks
Transfer case fluid lubricates gears and internal components. Leaks can occur due to damaged seals or gaskets.
Symptoms include:
- Fluid puddles under the vehicle
- Burning smell
- Grinding noises
Ignoring leaks can lead to severe internal damage.
Grinding or Unusual Noises
Worn gears, bearings, or chains can cause grinding, whining, or clunking sounds.
Common causes include:
- Low fluid levels
- Worn bearings
- Damaged chain
- Internal gear wear
Difficulty Shifting Modes
If the transfer case struggles to shift between modes, possible causes include:
- Faulty shift motor
- Damaged shift fork
- Electronic sensor failure
- Internal mechanical wear
Four-Wheel Drive Not Engaging
Failure to engage 4WD can result from:
- Electrical problems
- Broken actuator
- Vacuum line issues
- Internal transfer case damage
Vibration During Driving
A worn transfer case chain or damaged driveshaft components may cause vibrations while accelerating.
Transfer Case Warning Light
Modern vehicles may display dashboard warning lights if sensors detect transfer case problems.
Ignoring warning lights can lead to drivetrain failure.
Signs Your Transfer Case Needs Repair
Drivers should pay attention to early warning signs, including:
- Strange noises while driving
- Difficulty shifting drive modes
- Vehicle slipping out of 4WD
- Burning odor
- Fluid leaks
- Excessive vibration
- Reduced traction performance
Prompt diagnosis can prevent complete transfer case failure.
Transfer Case Maintenance Tips
Regular maintenance significantly extends transfer case lifespan.
Check Fluid Levels Regularly
Transfer case fluid should be inspected according to manufacturer recommendations. Low fluid levels increase friction and wear.
Replace Fluid on Schedule
Most manufacturers recommend fluid changes every 30,000 to 60,000 miles, depending on usage conditions.
Vehicles used for towing or off-roading may require more frequent servicing.
Inspect for Leaks
Routine inspections help identify leaking seals before fluid loss becomes severe.
Use Correct Fluid Type
Always use manufacturer-approved transfer case fluid. Incorrect fluid can damage internal components.
Avoid Improper 4WD Usage
Driving in 4WD on dry pavement can stress drivetrain components unnecessarily.
Listen for Unusual Sounds
Early detection of noises can prevent expensive repairs.
Transfer Case Repair Costs
Repair costs vary depending on vehicle type, damage severity, and labor rates.
Minor Repairs
Minor seal replacements or fluid services may cost between $150 and $500.
Moderate Repairs
Replacing bearings, chains, or actuators may range from $500 to $1,500.
Complete Rebuild
A full transfer case rebuild can cost between $1,500 and $3,000.
Replacement Costs
A brand-new transfer case may cost $2,000 to $5,000 or more for luxury or heavy-duty vehicles.
Transfer Case vs Transmission
Many people confuse the transfer case with the transmission, but they serve different purposes.
Transmission
The transmission controls gear ratios and transfers power from the engine.
Transfer Case
The transfer case distributes that power to multiple axles.
In four-wheel-drive vehicles, both components work together as part of the drivetrain system.
Transfer Case vs Differential
The differential allows wheels on the same axle to rotate at different speeds during turns.
The transfer case, on the other hand, splits power between front and rear axles.
Both are essential for smooth vehicle operation.
Manual vs Electronic Transfer Cases
Choosing between manual and electronic systems depends on driving preferences.
Manual Systems
Pros:
- Greater reliability
- Easier repairs
- Better off-road control
Cons:
- Less convenient
- Requires driver effort
Electronic Systems
Pros:
- User-friendly operation
- Automatic engagement
- Faster shifting
Cons:
- More complex electronics
- Higher repair costs
Off-road enthusiasts often prefer manual systems for reliability in extreme conditions.
Best Vehicles Known for Reliable Transfer Cases
Several manufacturers are known for durable transfer case systems.
Jeep Wrangler
The Jeep Wrangler is famous for rugged off-road transfer cases designed for extreme terrain.
Toyota Land Cruiser
Toyota transfer cases are respected for longevity and reliability.
Ford F-Series Trucks
Ford trucks use heavy-duty transfer cases suitable for towing and commercial work.
Chevrolet Silverado
Silverado transfer cases provide strong performance in work and off-road applications.
Land Rover Defender
Modern Defender models feature advanced electronic transfer case systems for luxury off-road capability.
Upgrading a Transfer Case
Many off-road enthusiasts upgrade their transfer cases to improve capability.
Popular upgrades include:
- Heavy-duty gear sets
- Lower crawl ratios
- Reinforced chains
- Twin-stick shifters
- Improved seals and bearings
Upgraded transfer cases are especially valuable for rock crawling, overlanding, and towing applications.
Can You Drive with a Bad Transfer Case?
Driving with a damaged transfer case is risky. Minor issues may allow temporary driving, but severe damage can lead to:
- Loss of four-wheel drive
- Transmission damage
- Driveshaft failure
- Unsafe handling conditions
Ignoring symptoms often increases repair costs significantly.
How Long Does a Transfer Case Last?
A properly maintained transfer case can last 150,000 to 300,000 miles or more.
Longevity depends on:
- Driving habits
- Maintenance quality
- Off-road usage
- Towing frequency
- Fluid condition
Routine maintenance is the key to maximizing lifespan.
Transfer Case Fluid Explained
Transfer case fluid lubricates internal gears, bearings, and chains while reducing heat and friction.
Different vehicles require specific fluid types such as:
- Automatic transmission fluid (ATF)
- Synthetic gear oil
- Specialized transfer case fluid
Using incorrect fluid can damage seals and internal components.
Transfer Case in Modern AWD Vehicles
Modern AWD systems use sophisticated transfer cases controlled by onboard computers.
These systems can:
- Detect wheel slip instantly
- Adjust torque automatically
- Improve fuel efficiency
- Enhance traction and stability
Luxury SUVs and crossover vehicles increasingly rely on electronically controlled transfer cases.
Future of Transfer Case Technology
As electric vehicles become more common, transfer case technology continues evolving.
Future innovations may include:
- Lightweight materials
- Smarter electronic controls
- Integrated electric drive systems
- Improved efficiency
- Advanced torque vectoring
Even with changing automotive technology, the core purpose of distributing power effectively remains essential.
Conclusion
The transfer case is one of the most important components in any four-wheel-drive or all-wheel-drive vehicle. From improving traction and towing capability to enabling serious off-road performance, the transfer case ensures engine power reaches the wheels efficiently under all driving conditions.
Understanding how transfer cases work, recognizing early signs of failure, and following proper maintenance practices can save vehicle owners thousands of dollars in repairs. Whether you are a casual driver, an off-road enthusiast, or a truck owner who depends on reliable drivetrain performance, maintaining a healthy transfer case is crucial.
As automotive technology advances, transfer cases continue evolving with smarter electronics and more efficient designs. However, their fundamental role remains unchanged: delivering dependable power distribution for maximum traction, control, and performance.
If you own a four-wheel-drive or all-wheel-drive vehicle, investing time in learning about your transfer case can help you improve reliability, extend vehicle lifespan, and enjoy safer driving experiences in all types of terrain and weather conditions.
